Custom SIEM Lab Implementation

Welcome, Readers! Today, we’ll walk through setting up a comprehensive SIEM lab using Elastic, where we’ll explore how to monitor, analyze, and respond to security threats effectively. This hands-on guide will get you up and running in no time!

Posted Aug 13, 2024

SIEM Lap Setup

By bericontraster

5 min read

Custom SIEM Lab Implementation

What is SIEM?

SIEM (Security Information and Event Management) is a security solution that aggregates and analyzes data from across an organization’s IT environment to detect threats and respond quickly. By combining real-time event monitoring (SEM) with historical data analysis and reporting (SIM), SIEM provides comprehensive visibility, enhances threat detection, and helps meet regulatory compliance.

Why Set Up an Elastic SIEM Lab?

Creating an Elastic SIEM lab gives you a safe and controlled environment to explore and experiment with security practices. It allows you to:

Analyze and interpret security logs and events.
Identify and respond to potential threats effectively.
Deepen your understanding of incident response processes.
Experiment with the powerful features of the Elastic Stack without any risk to live systems.

Requirements

VirtualBox or VMware
Elastic Cloud

VirtualBox Setup

We’ll be using Kali Linux for this project. You can use it on any virtualization platform.

Download the vbox image from kali.
Download VirtualBox or any other platform.

Make the sure the date & time of the kali machine is correct.

Elastic Cloud Setup

Signup on Elastic Cloud (free trial).

Setting up the Agent

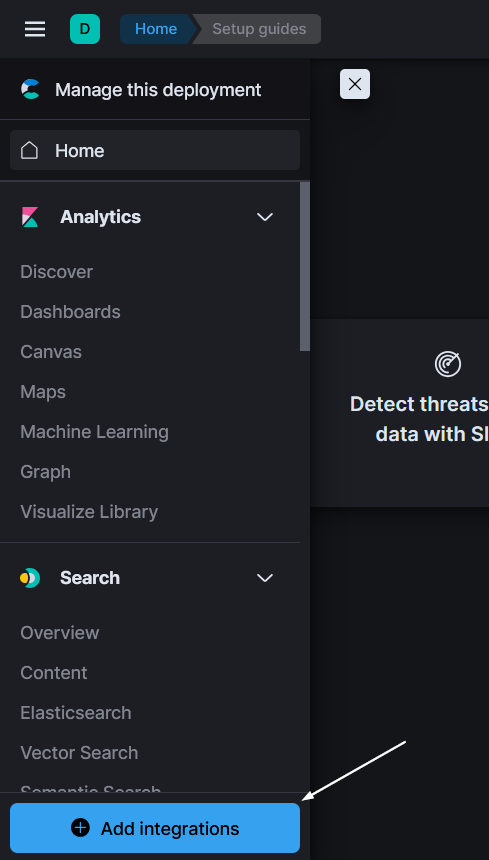

On Elastic homepage click on menu and then select add integerations.

Adding Integration

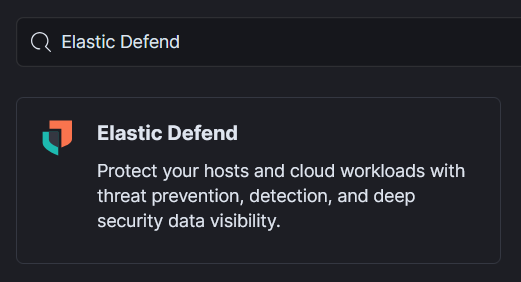

Now in the search bar type “Elastic Defend” and select it.

Elastic Defend

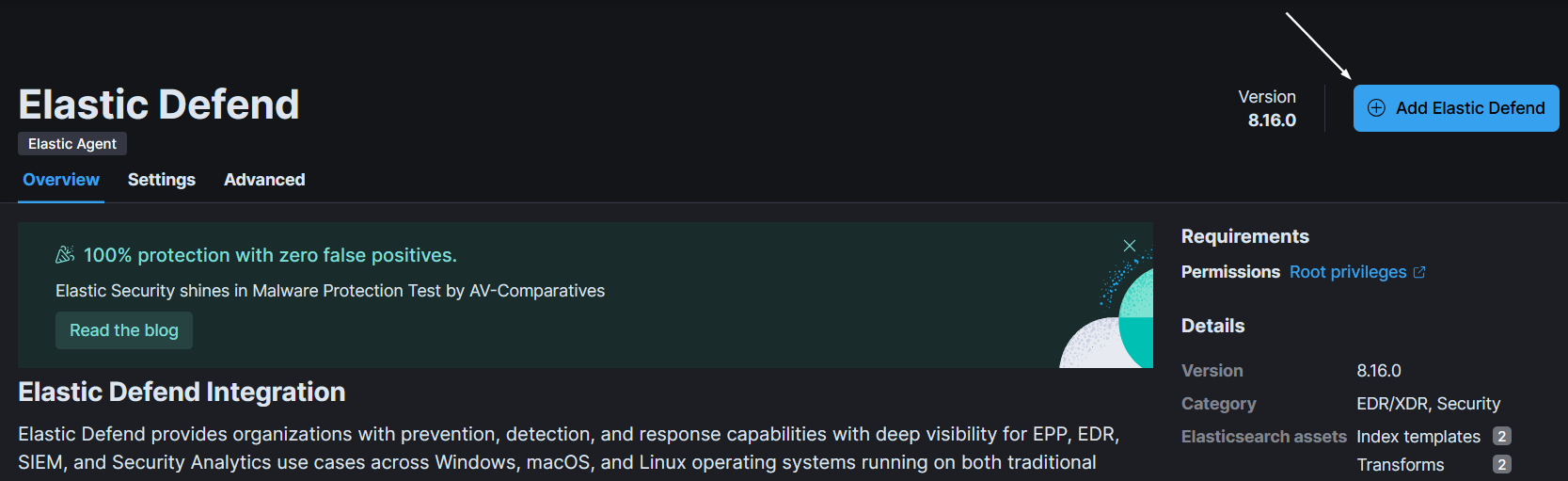

Now select “Add Elastic Defend”.

Adding Elastic Defend

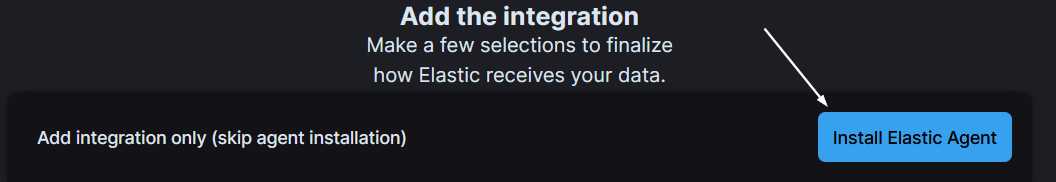

Now click on “Install Elastic Agent”.

Installing Elastic Agent

Copy the command and paste in the kali terminal and super user. If it asks for any options just go with the default ones. We can see that the commands for other operating systems are available as well i.e window, mac etc.

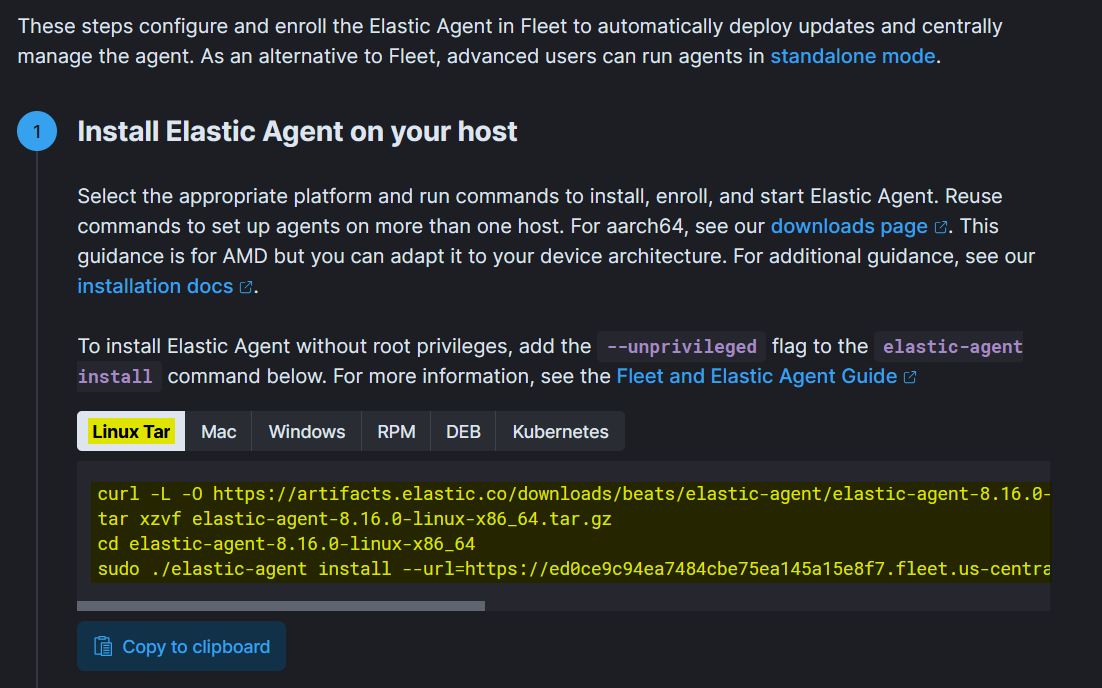

Installing on Linux

Confirming the installation systemctl status elastic-agent.service.


~$ systemctl status elastic-agent.service
● elastic-agent.service - Elastic Agent is a unified agent to observe, monitor and protect your system.
     Loaded: loaded (/etc/systemd/system/elastic-agent.service; enabled; preset: disabled)
     Active: active (running) since Wed 2024-11-13 04:57:51 EST; 6min ago
 Invocation: 703e7feedf504581803789f97736546a
   Main PID: 3933 (elastic-agent)
      Tasks: 36 (limit: 6819)
     Memory: 308M (peak: 369.6M)
        CPU: 7.719s
     CGroup: /system.slice/elastic-agent.service
             ├─3933 elastic-agent
             ├─4093 /opt/Elastic/Agent/data/elastic-agent-8.16.0-3f07f2/components/agentbeat filebeat -E setup.ilm.enabled=false -E setup.template.enabled=fal>
             ├─4099 /opt/Elastic/Agent/data/elastic-agent-8.16.0-3f07f2/components/agentbeat metricbeat -E setup.ilm.enabled=false -E setup.template.enabled=f>
             └─4109 /opt/Elastic/Agent/data/elastic-agent-8.16.0-3f07f2/components/agentbeat metricbeat -E setup.ilm.enabled=false -E setup.template.enabled=f>

Nov 13 04:57:56 kali elastic-agent[3933]: {"log.level":"info","@timestamp":"2024-11-13T04:57:56.748-0500","message":"Stopping 0 inputs","component":{"binary":>
Nov 13 04:57:56 kali elastic-agent[3933]: {"log.level":"info","@timestamp":"2024-11-13T04:57:56.748-0500","message":"Crawler stopped","component":{"binary":"f>
Nov 13 04:57:56 kali elastic-agent[3933]: {"log.level":"info","@timestamp":"2024-11-13T04:57:56.748-0500","message":"Stopping Registrar","component":{"binary">
Nov 13 04:57:56 kali elastic-agent[3933]: {"log.level":"info","@timestamp":"2024-11-13T04:57:56.748-0500","message":"Ending Registrar","component":{"binary":">
Nov 13 04:57:56 kali elastic-agent[3933]: {"log.level":"info","@timestamp":"2024-11-13T04:57:56.748-0500","message":"Registrar stopped","component":{"binary":>
Nov 13 04:57:56 kali elastic-agent[3933]: {"log.level":"info","@timestamp":"2024-11-13T04:57:56.760-0500","message":"Total metrics","component":{"binary":"fil>
Nov 13 04:57:56 kali elastic-agent[3933]: {"log.level":"info","@timestamp":"2024-11-13T04:57:56.761-0500","message":"Uptime: 3.16115161s","component":{"binary>
Nov 13 04:57:56 kali elastic-agent[3933]: {"log.level":"info","@timestamp":"2024-11-13T04:57:56.761-0500","message":"Stopping metrics logging.","component":{">
Nov 13 04:57:56 kali elastic-agent[3933]: {"log.level":"info","@timestamp":"2024-11-13T04:57:56.761-0500","message":"Stats endpoint (/opt/Elastic/Agent/data/t>
Nov 13 04:57:56 kali elastic-agent[3933]: {"log.level":"info","@timestamp":"2024-11-13T04:57:56.761-0500","message":"filebeat stopped.","component":{"binary":>
lines 1-24/24 (END)

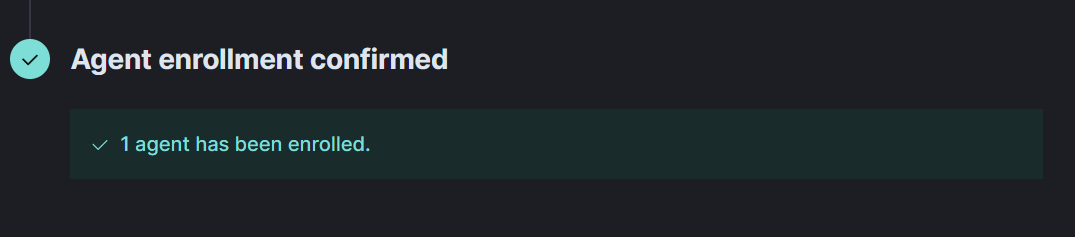

We can also comfirm by checking the enrolled agent on the Elastic Cloud below the given commands.

Enrolled Agents

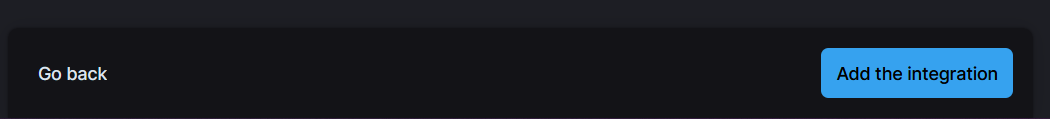

Now once all of that is done click on “Add the integration” and then “Confirm incoming data”.

Add Integration

Now from the menu select logs and we’ll be able to see logs coming from the enrolled system.

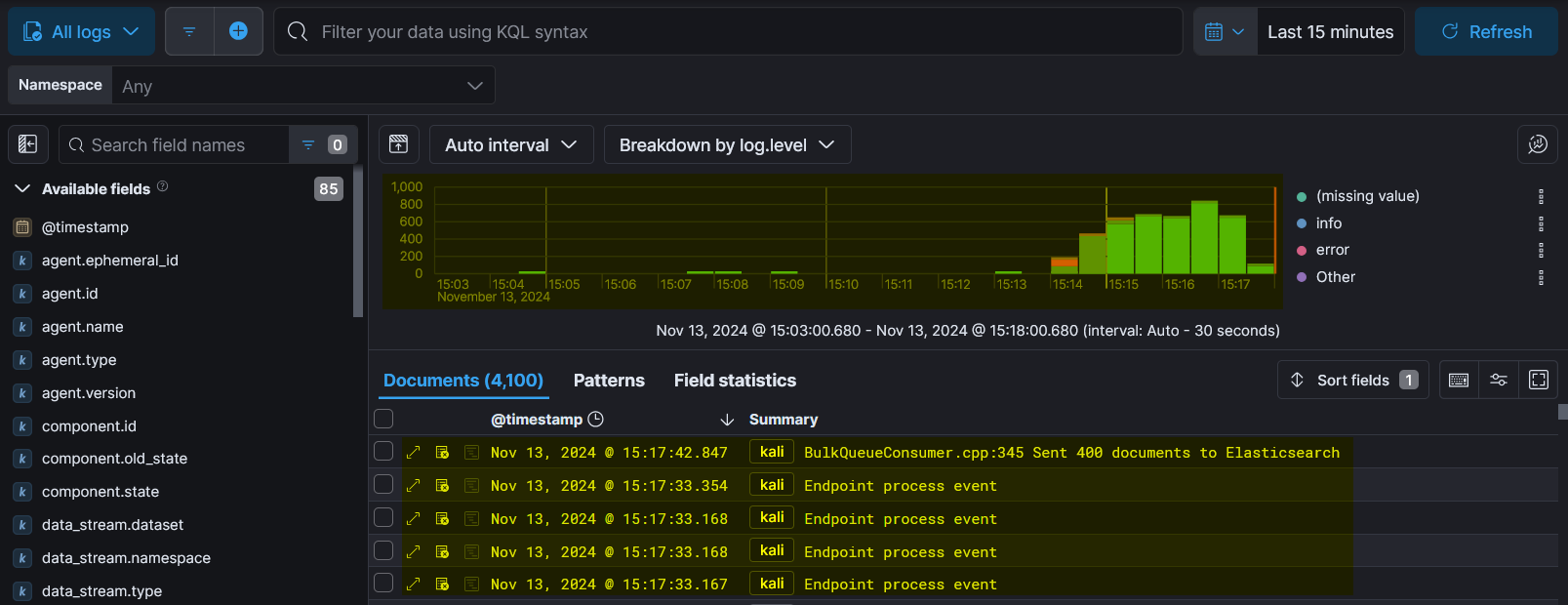

Viewing Incoming Logs

Generating Events

Let’s run a nikto scan on localhost to create an event.


~$ nikto -url 127.0.0.1
- Nikto v2.5.0
---------------------------------------------------------------------------
---------------------------------------------------------------------------
+ 0 host(s) tested

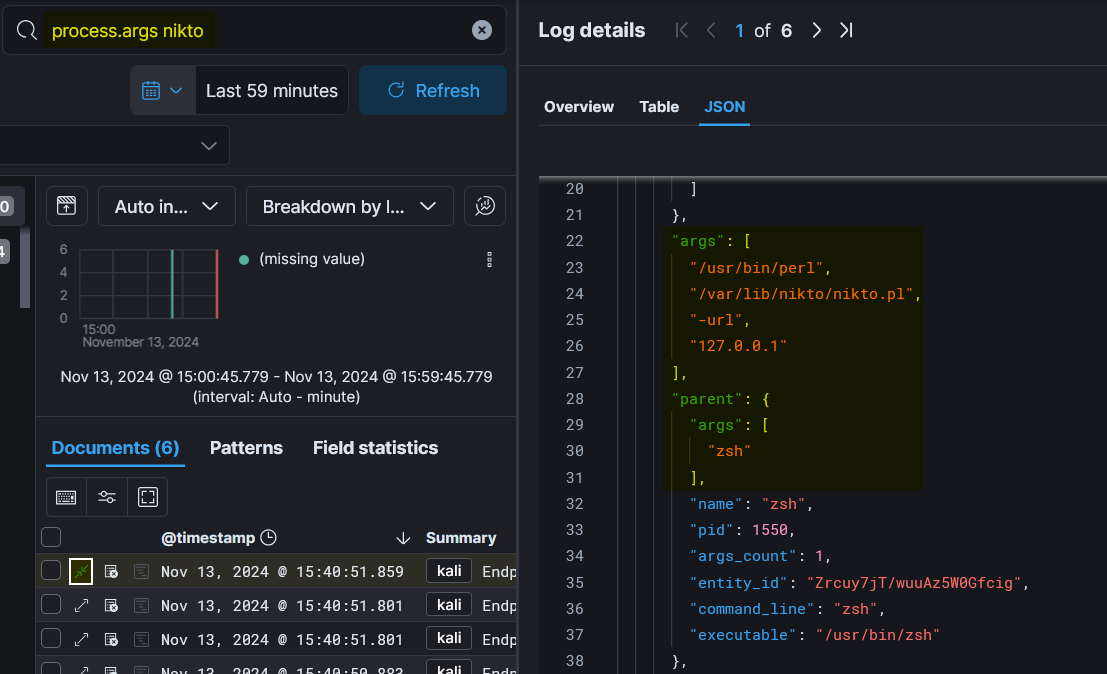

Now search process.args nikto and click on details to view more about the event.

Viewing Nikto Event

Setting up the Dashboard

Now from the menu select “Dashboards” and then select “Create Dashboard”.

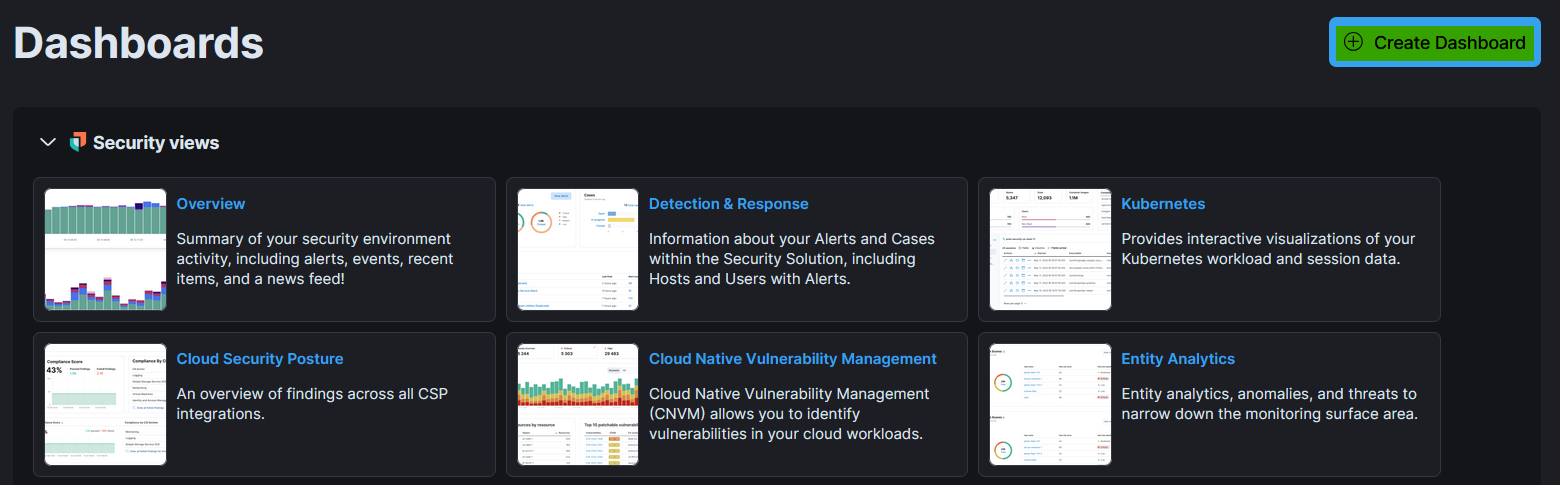

Creating Dashboard

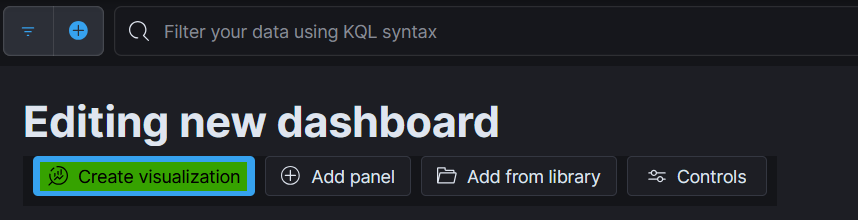

Create Visualization

Now for the “Horizontal Axis” select @timestamp and for “Vertical Axis” select Records.

Setting up the Axis Values

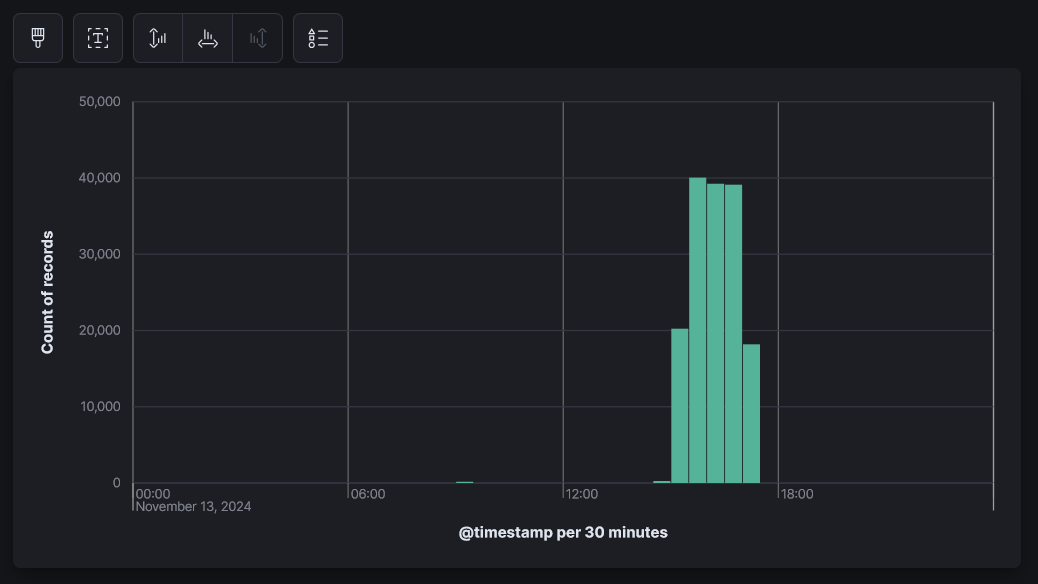

Final Visualization

Setting up Alerts

In a SIEM system, alerts are notifications triggered when specific security events or patterns are detected. These alerts are generated based on predefined rules or machine learning models that monitor logs and data streams for suspicious activities.

From menu select “Alerts” and then select “Manage Rule” and then select “Create new rule”.

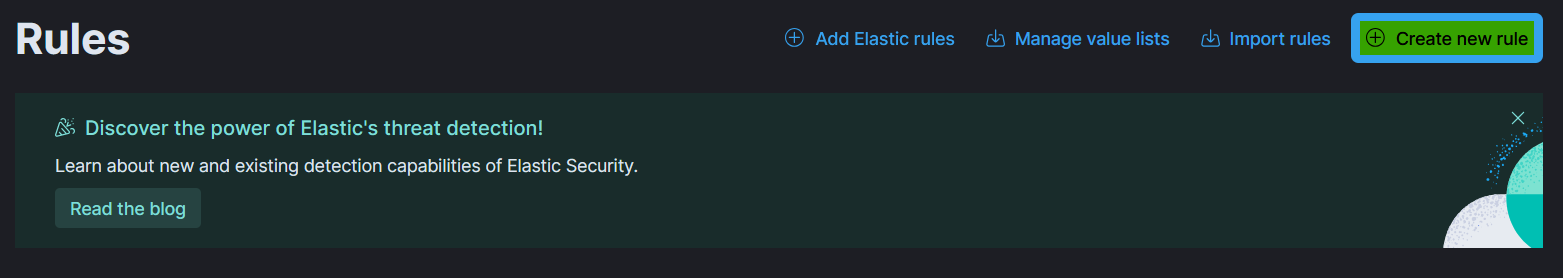

Creating New Rule

Now from “Define Rule” select “Rule Type” as Custom query
From “Source” select Data View
From “Data View” select logs-*
In “Custom query” type process.args nikto, so we’ll get an alert whenever someones run nikto on the system.
Click Continue

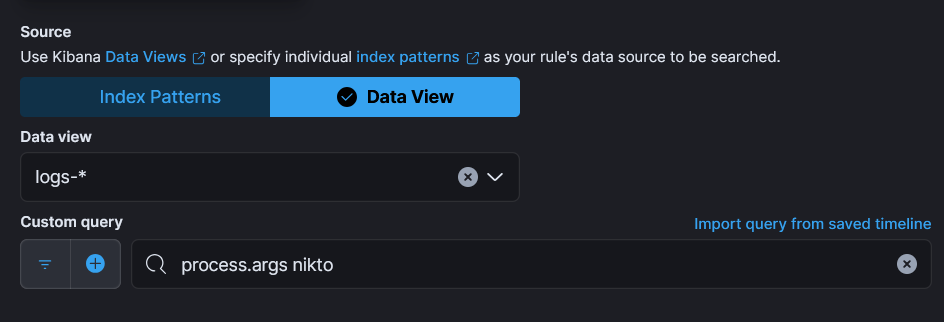

Custom Query

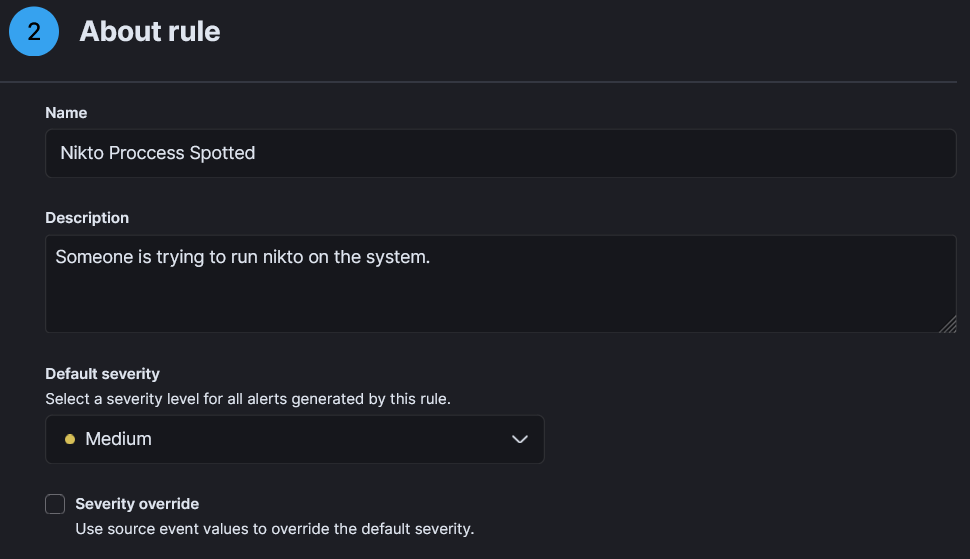

Now in “About rule” Type name, description, severity and continue.

Adding Rule Information

Now in “Schedule rule” select your values, for this project I’ll be using default ones.

Schedule Rule

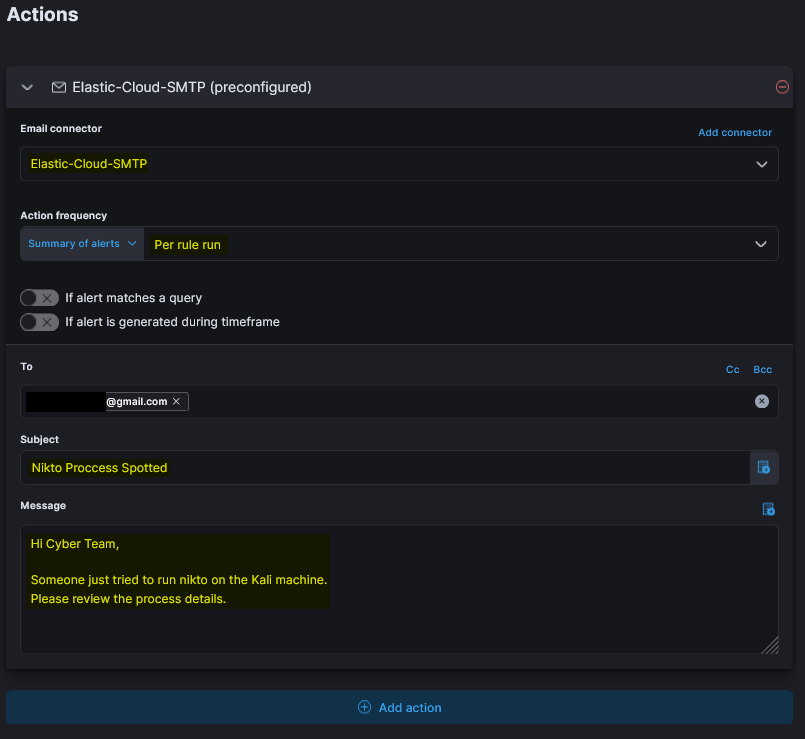

Now in “Rule actions” select Mail and add the details
Click “Create & enable rule”

Adding the Rule Action

Now run the same nikto command to trigger an alert.

nikto -url 127.0.0.1

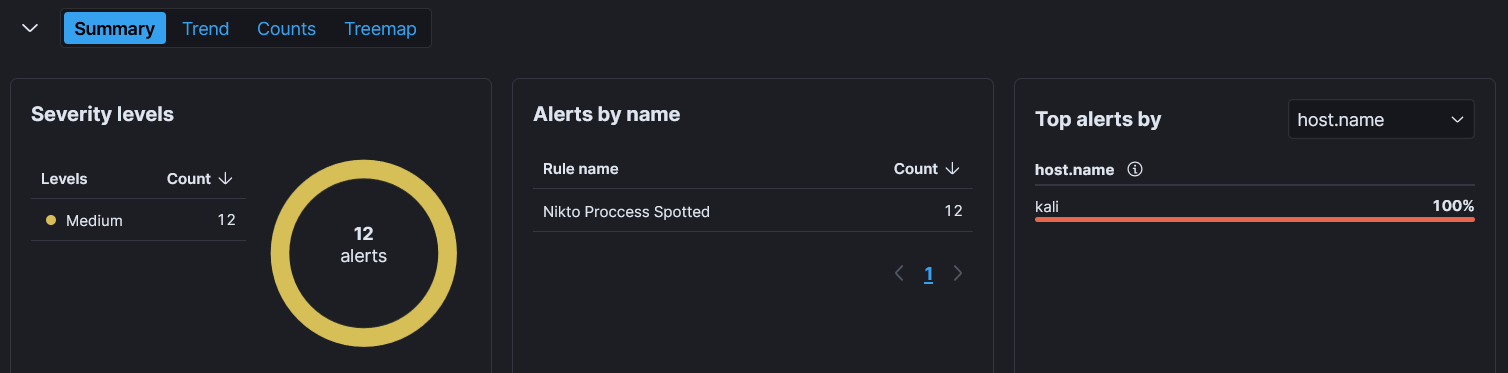

Nikto Alert

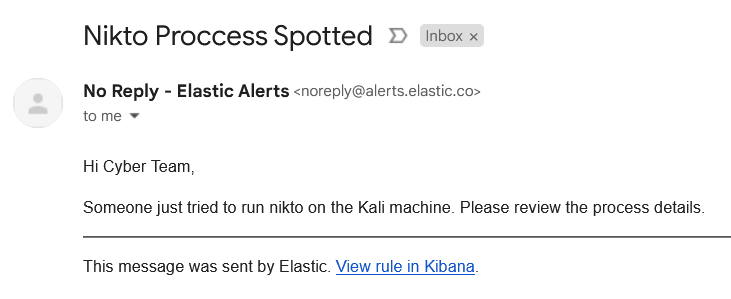

Alert Mail

Conclusion

Setting up your own Elastic SIEM lab equips you with practical cybersecurity skills by providing a robust, hands-on environment. In this guide, you have successfully established an Elastic Stack setup, complete with Elasticsearch, Logstash, and Kibana, to monitor and analyze security data from both Linux and Windows machines.

Throughout this lab, you accomplished the following:

Environment Configuration: You created an Elastic Cloud account and deployed Elasticsearch, laying the groundwork for your SIEM lab.
Virtual Machine Setup: Using virtualization tools like VMware, you installed and configured Kali Linux and Windows 10, ensuring they were networked correctly and time-synchronized.
Elastic Agent Installation: You deployed Elastic Agents on both operating systems to collect and stream logs, verifying that data was correctly ingested into Elasticsearch.
Log Monitoring and Analysis: By executing network scans and system commands, you observed real-time data flow in Kibana, enhancing your understanding of how to interpret and manage security logs.
Data Visualization: You used Kibana to create interactive visualizations, making it easier to identify trends, anomalies, and potential threats in your data.
Alert Configuration: You set up alerts for critical events, such as network scans or unauthorized access attempts, ensuring you’re notified promptly and can respond effectively.

By building and interacting with this lab, you’ve gained crucial insights into SIEM operations. The experience you’ve gathered helps in analyzing security events, detecting threats, and implementing proactive responses. Practicing in this controlled setup prepares you for real-world scenarios, enhancing your expertise in defending against cyber threats.
